Time：2013-08-10 Source：Winshor Technology

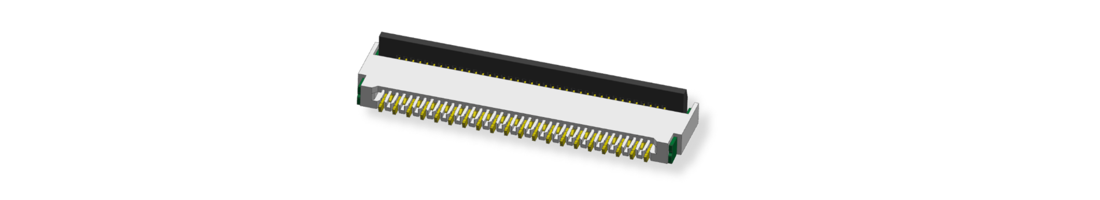

Pitch0.3mm, H=1.0 The back-locking FPC connector was successfully developed and officially put into mass production to meet the customer's space-saving application requirements.

Product Features
• 0.3mm pitch, 1.0mm height, saving space
• Rated current: 0.2A; rated voltage: 30V
• Horizontal SMT back lock type
• Terminal upper and lower double contact structure, FPC cable can be inserted on the front and back
• Stable contact reliability and FPC cable retention
• Good lid lock feel
