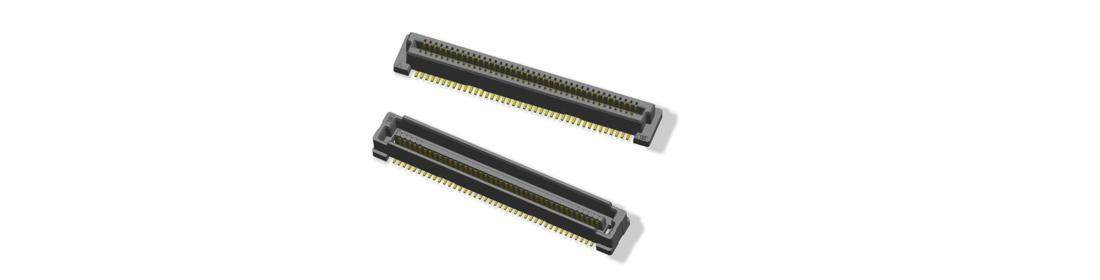

Pitch0.8mm, H=5.0mm combined height dimension board-to-board connector
Time：2012-04-23   Source：Winshor Technology
Pitch0.8mm, H=5.0mm combined height dimension board-to-board connector was successfully developed and officially put into mass production to meet customers' multiple data transmission requirements.

Pitch0.8mm, H=5.0mm combined height dimension board-to-board connector was successfully developed and officially put into mass production to meet customers' multiple data transmission requirements.


Product Features
    • 0.8mm pitch, 6.0mm side width, combined height 5.0mm
    • Maximum number of pins reaches 200, meeting multiple signal transmission requirements
    • Rated current: 0.5A; rated voltage: 100V
    • Stable contact reliability and coordination
    • Good insertion and removal
